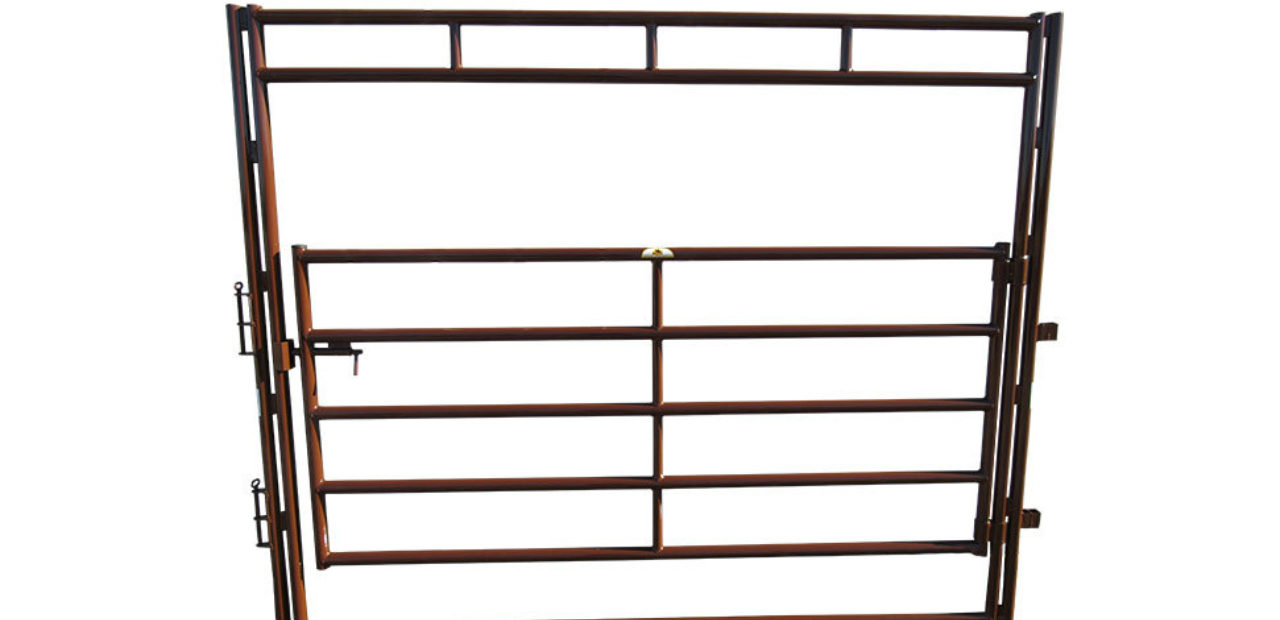

HiQual Heavy Duty Frame Gates

HiQual's Heavy Duty Frame Gates provide an extremely durable and portable gate to complement the Heavy Duty Panel line. These gates are engineered to withstand heavy crowding situations and are ideal for working pens and temporary confinement.

Available in 5 Rails: 4', 5', 6', 8', 10' and 12' lengths.
Available in 6 Rails: 6', 8', 10' and 12' lengths.

• Square corners for safety.
• Notched vertical braces for added strength.
• Balanced for strength, no weak spots.
• Spring loaded, plunger latch for ease of use.

Suggested Applications:

• Crowding pens and alleys
• Feedlots
• Rodeos
• Riding arenas

  • Frame Height: 92”
  • Gate Posts & Rails: 2” x 14 gauge round
  • Gate Braces: 1 1/2” x 16 gauge round
  • Frame Horizontal Rails: 2” x 14 gauge round
  • Frame Top Brace: 1 1/2” x 16 gauge round
  • Frame Posts: 4', 5', 6' & 8' lengths = 2” x 14 gauge round
  • Frame Posts: 10' & 12' lengths = 2” x 11 gauge round
  • Gate Latch: Spring loaded plunger
  • Paint: Baked on powder coat paint
