Round Bale Transport (RBT)

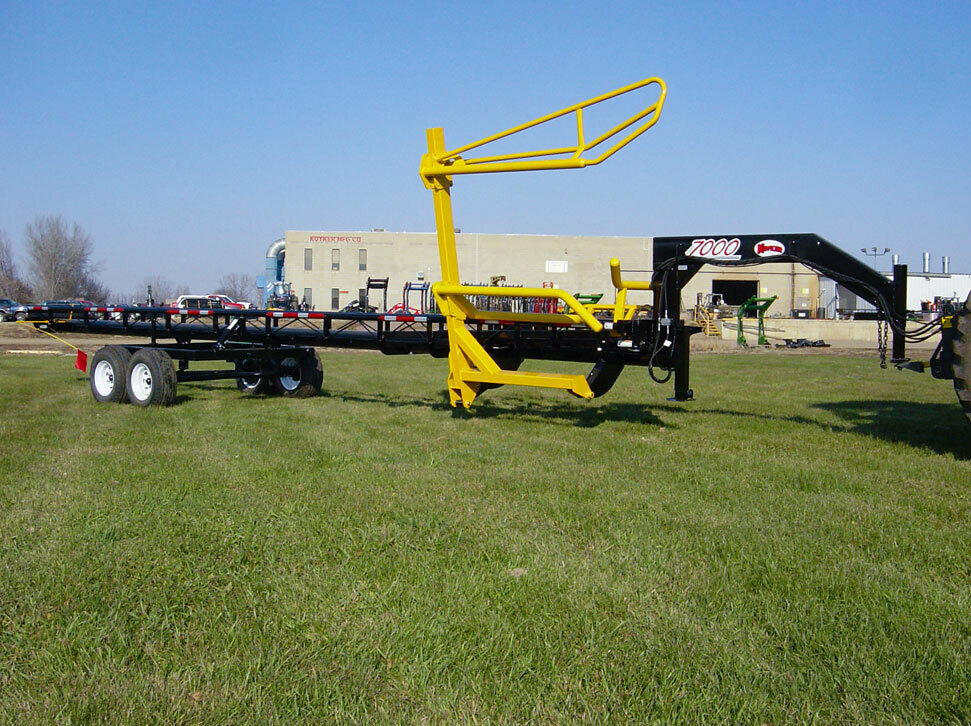

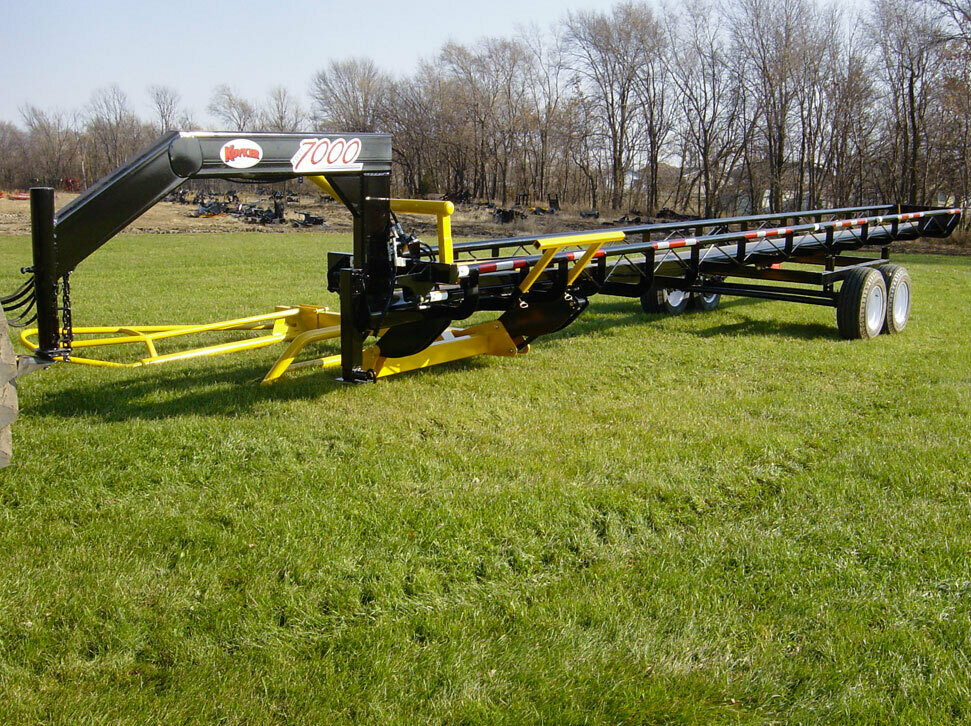

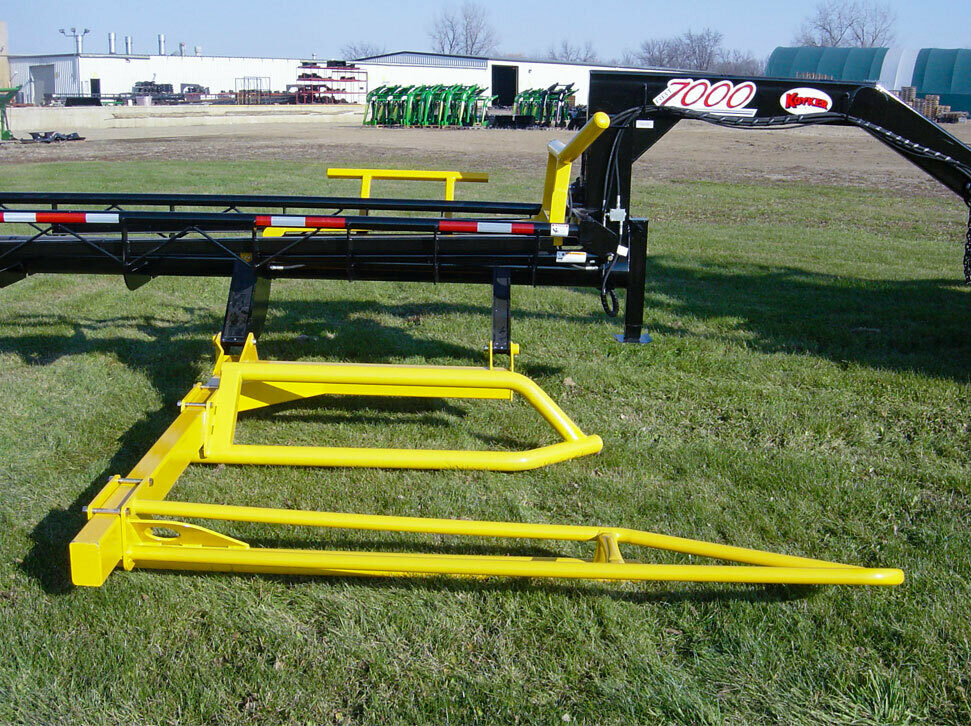

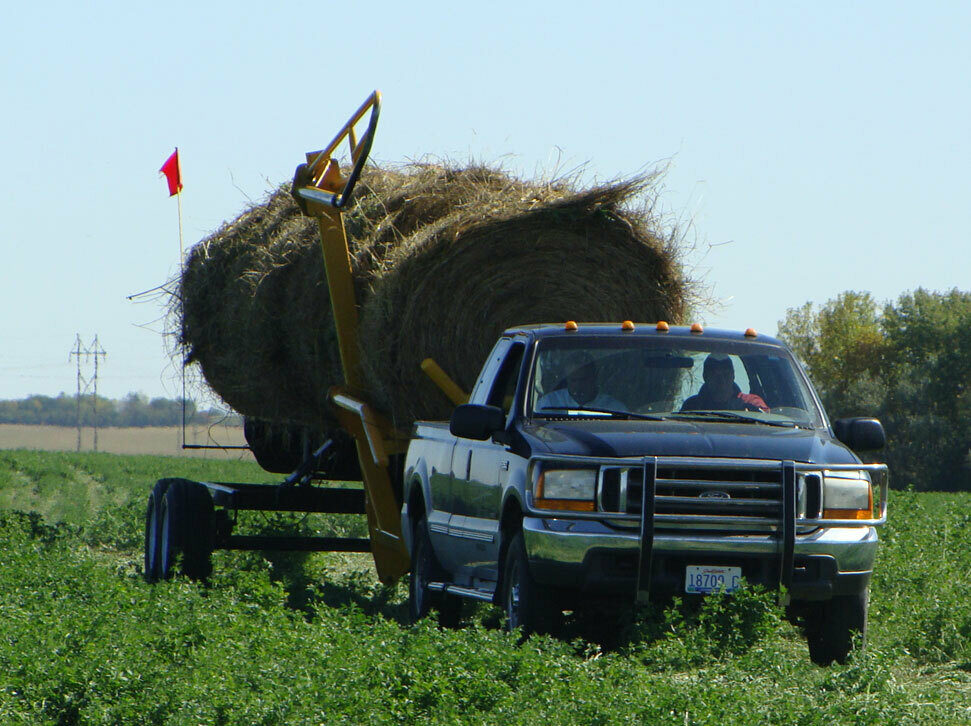

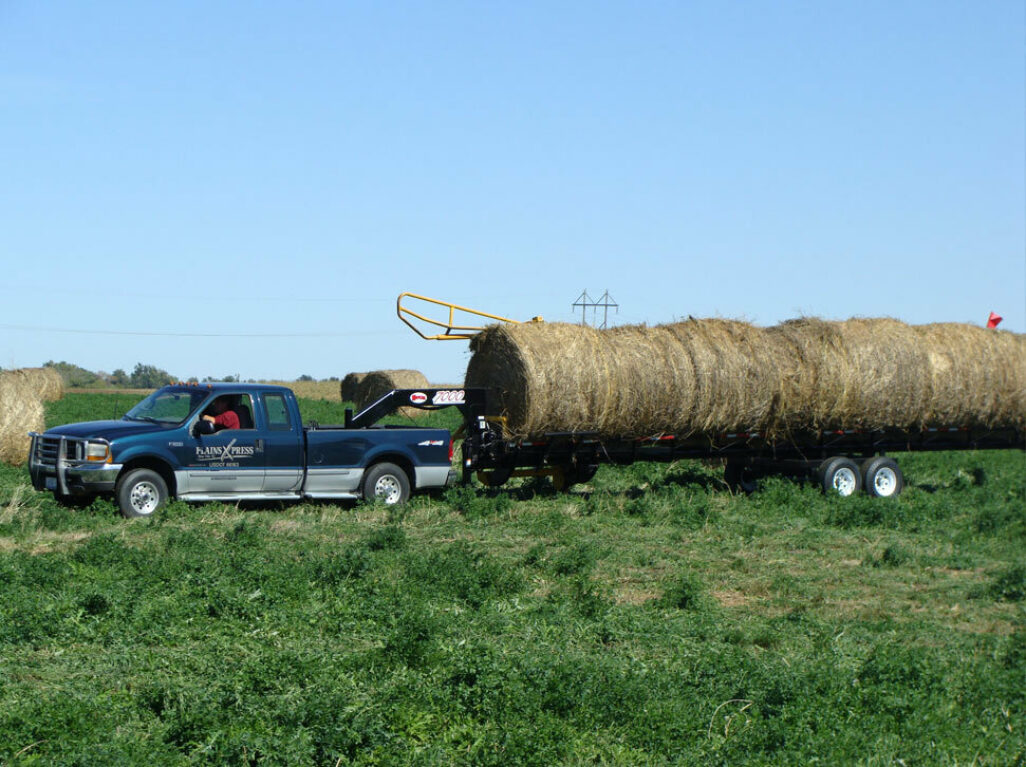

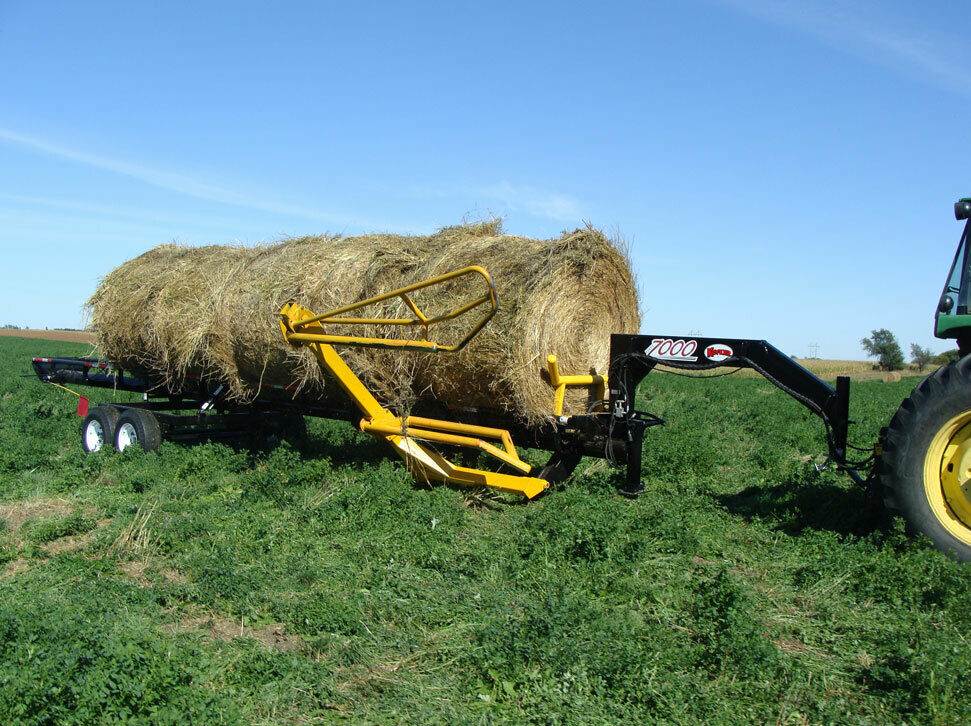

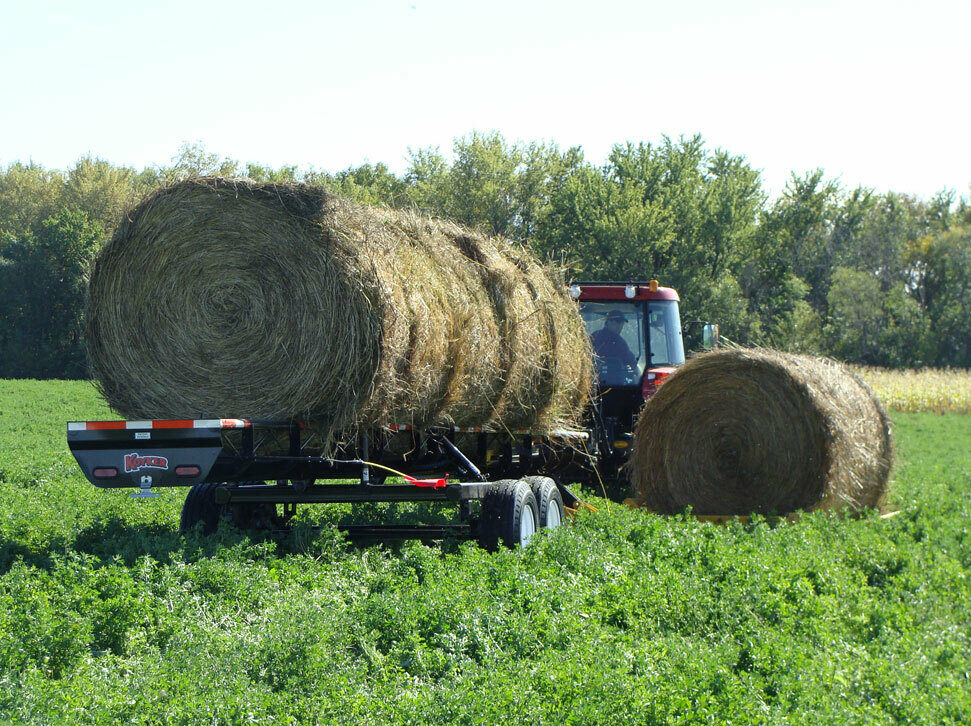

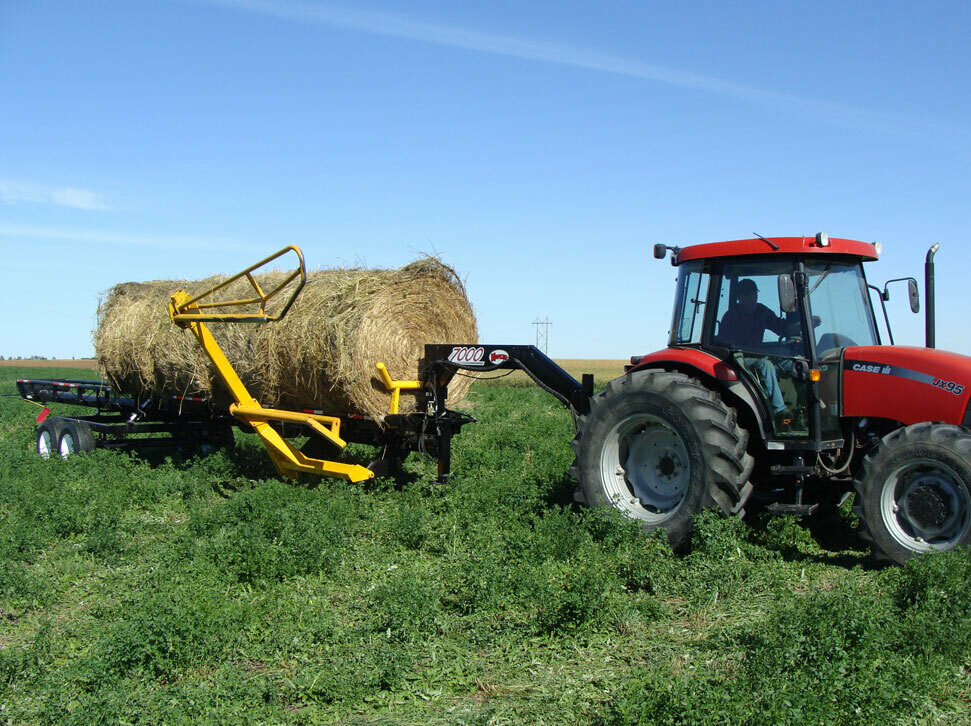

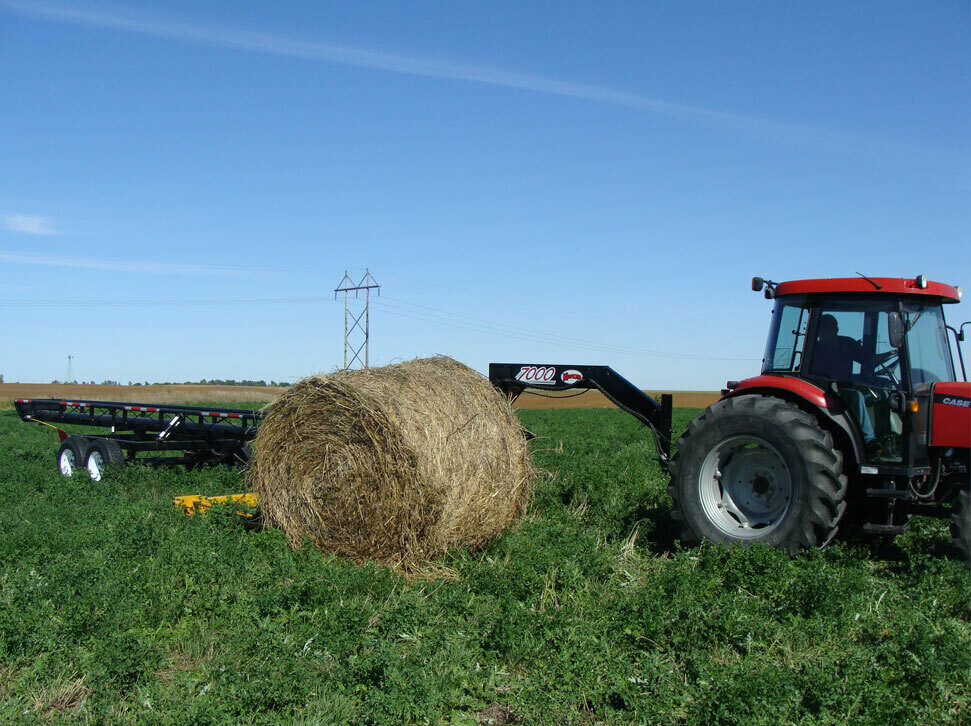

The adjustable picking arm is designed to spin/deflect the bale before picking it up, so you can follow the baler in the field. Inline loading. The bed is offset to the axles to give you more stability and counter balance when picking up bales. Operate it with your pickup, truck or tractor!

Features

• Easy Gooseneck Hitching
• 10,000# Trailer Jack
• Electric Brakes & Lights
• All Hydraulic Operation
• Hydraulic Dump
• Enclosed Hydraulic & Wiring Routing
• Fast Accumulating Of Bales In The Field
• Wide Tires Help To Reduce Damage to Hay Fields

Specifications:

• 7 Bale Capacity (5’ Bale)
• 8 Bale Capacity (4’ Bale)

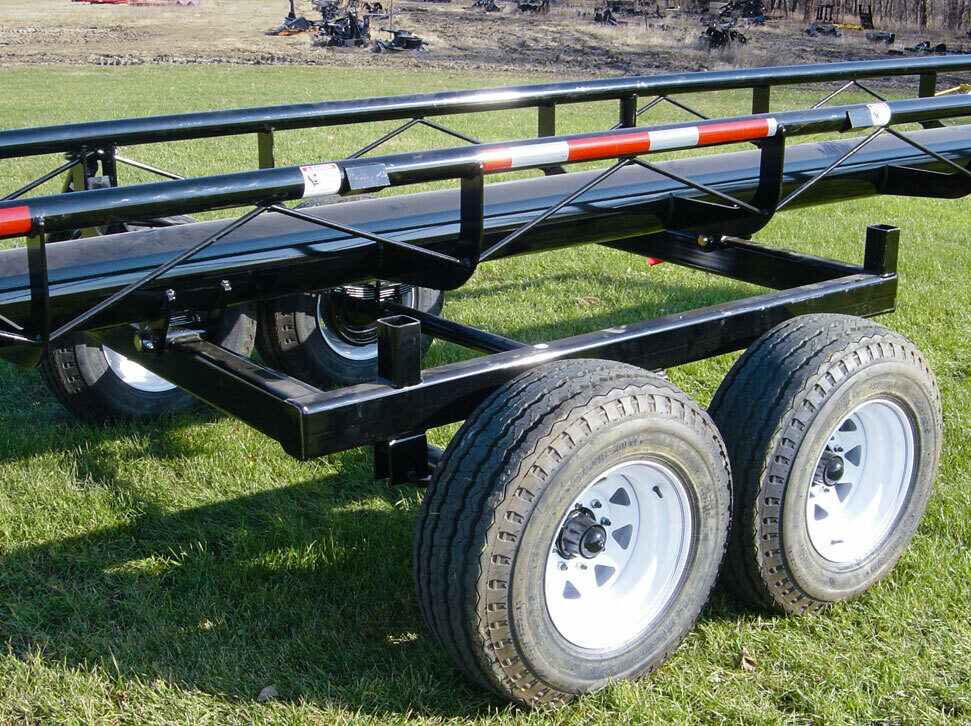

• 7,000# Trailer Axles – 8 Bolt Hubs
• 305R70-16 (10 ply) Highway Tires
• 3000# Wide Profile White Spoke Wheels
• 45’ Overall Length - 37’ Bed Length
• 14’- 3” Operating Width
• 8’– 6” Travel Width
• 4850 Lbs. Shipping Weight
• NOTE: 6' DIAMETER BALE SIZE ONLY
